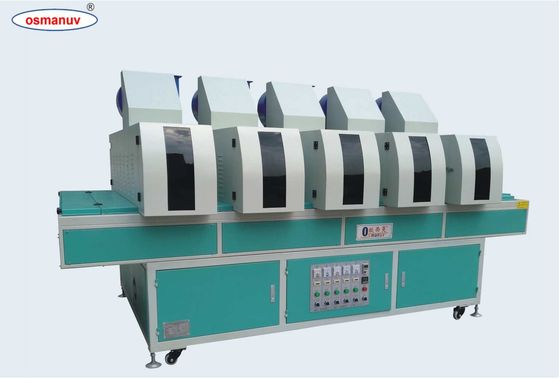

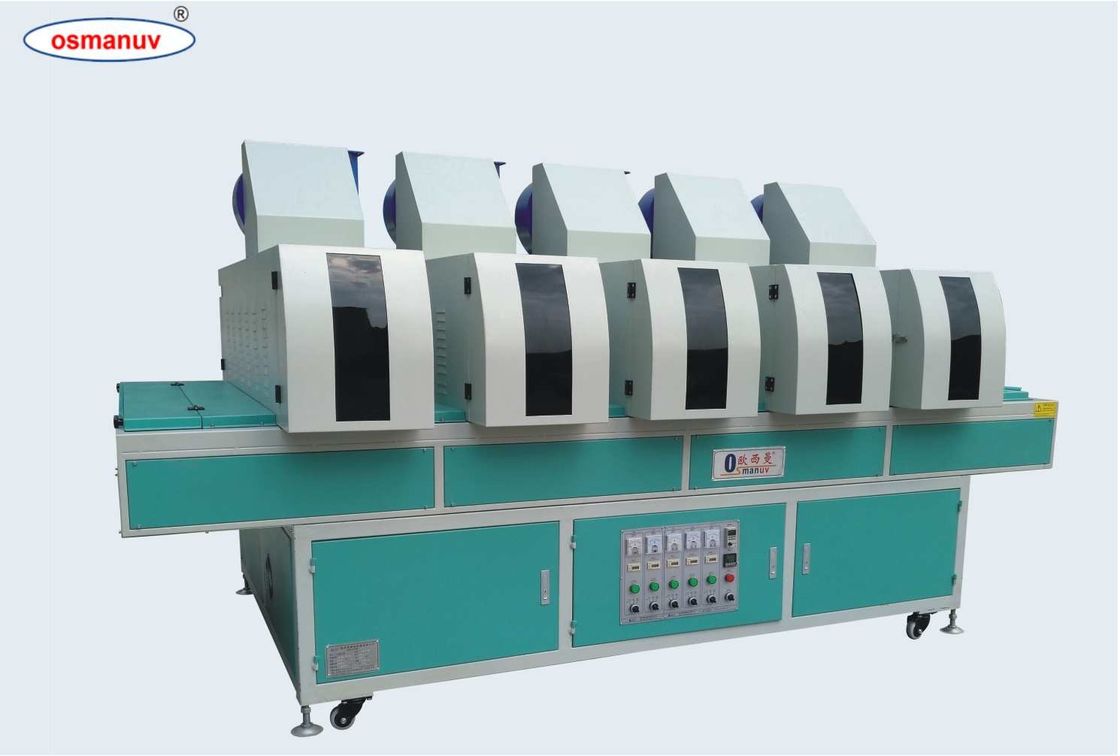

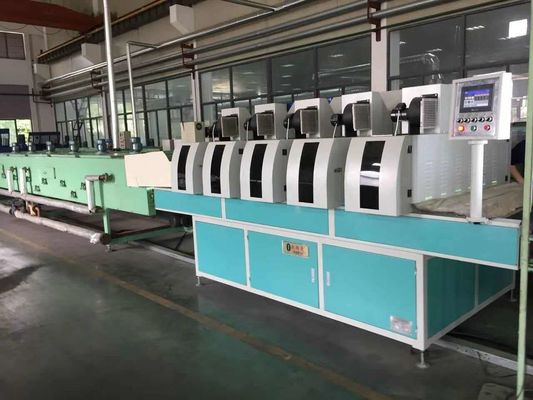

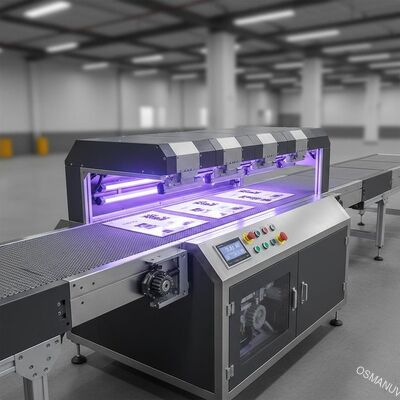

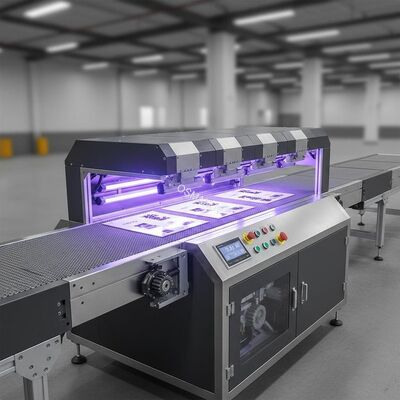

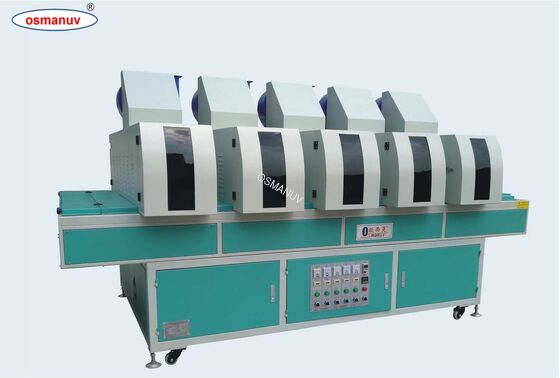

High-Speed 5-Lamp UV Curing Machine with Customizable Conveyor for Instant Ink Drying

Product Description

This 5-lamp UV curing machine is designed for high-efficiency, instant curing of UV-sensitive materials including inks, coatings, adhesives, and varnishes on various substrates such as paper, wood, plastic, metal, and PCB boards. Equipped with five independent UV lamp units, it delivers uniform energy distribution and faster curing speeds compared to single or dual-lamp systems. The modular design supports customizable lamp power, wavelength (365nm/395nm/405nm), conveyor width, and cooling methods to match different production line requirements. Ideal for screen printing, digital printing, electronic assembly, and coating industries.

Technical Parameters(表格形式)

Application

• Screen printing (paper, plastic, glass, metal)

• PCB solder mask and legend curing

• Digital inkjet printing coating

• Wood coating (UV varnish)

• Adhesive bonding in electronics

• 3D printing post-curing

• Automotive parts coating

Supports customizable conveyor widths and lamp heights for non-standard substrates.

Customization(可定制内容)

We provide full customization for the 5-lamp UV curing machine, including:

• Number of lamps (2–10 units)

• Lamp power per unit (1kW – 15kW)

• UV wavelength (365/395/405 nm or combination)

• Curing width (200mm – 2000mm)

• Conveyor type (mesh, belt, roller, magnetic)

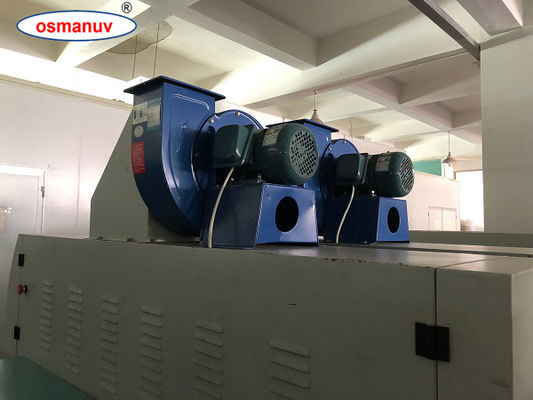

• Cooling method (air-cooled, water-cooled, chilled)

• Control system (PLC + HMI touchscreen)

• Height adjustment mechanism (manual or automatic)

• Shielding and exhaust interface for cleanroom environment

Feature

• 5 independent lamp units – can be turned on/off separately

• Even UV intensity distribution – no dark zones between lamps

• Adjustable lamp height (0–150mm) for different product thickness

• Over-temperature protection and automatic shutdown

• Digital speed display and conveyor reverse function

• Low ozone quartz glass (optional)

• Modular lamp cassette – easy maintenance

• Energy-saving standby mode

Support and Services

• 12-month warranty (extendable to 24 months)

• Free online troubleshooting and spare parts list

• On-site installation and training available (for customizable service packages)

• Remote debugging via video call

• Lifetime technical support

• Spare parts supply for 10+ years

Packing and Shipping

• Packing: Standard export plywood case with shock-proof foam and moisture-proof film.

• Dimensions (packed): 2650×1050×1750 mm (standard unit)

• Gross weight: ~750 kg

• Shipping: FOB Shanghai / Shenzhen. By sea, air, or rail.

• Customizable packing options ( anti-rust, container-ready).

FAQ

Q1: Can the lamp wavelength be customized for different inks?
A1: Yes. We support customizable wavelengths: 365nm for standard UV, 395nm for LED-sensitive inks, and 405nm for 3D printing resins.

Q2: What is the maximum curing width you can make?
A2: The standard width is 500mm, but we offer customizable widths up to 2000mm.

Q3: Is water-cooling better than air-cooling for 5-lamp machines?
A3: For continuous 24/7 operation and lower heat transfer to substrates, water-cooling is recommended – and it is customizable on request.
