Spot UV Curing Machine for Selective Area Curing | High Flexibility
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Osmanuv |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | OSM-UV-620 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | صندوق خشبي |
| وقت التسليم: | 30 ~ 45 يومًا |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| وظيفة: | آلة تجفيف حبر الأشعة فوق البنفسجية | الأبعاد العامة: | 1900/1530/1410mm |
|---|---|---|---|
| أسلوب الطباعة: | آلة الطباعة الرقمية | أصل: | الصين |
| الجهد االكهربى: | 220 فولت | مادة الطلاء: | ورنيش UV |
| منطقة التطبيق: | طباعة الشاشة باستخدام حبر الأشعة فوق البنفسجية | نوع اللوحة: | الة العلاج بالأشعة فوق البنفسجية |
| إبراز: | spot UV curing machine for selective area,UV curing machine with high flexibility,selective UV curing machine with warranty,UV curing machine with high flexibility,selective UV curing machine with warranty |
||
منتوج وصف

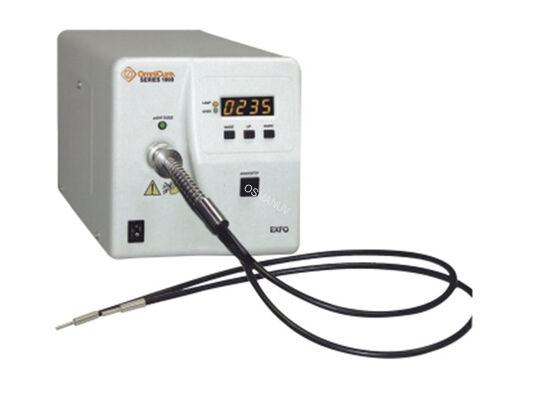

Spot UV Curing Machine for Selective Area Curing | High Flexibility
1. Composition of Production Line

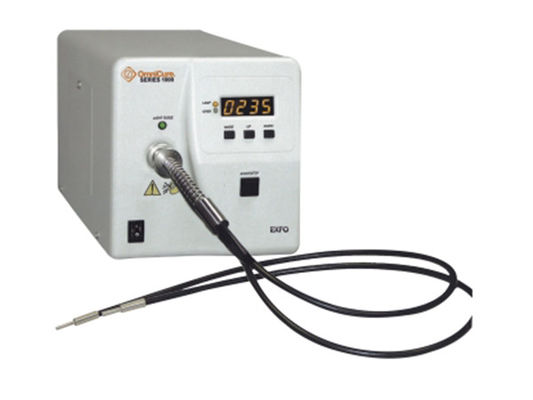

This flexible setup typically includes: a manual or automated positioning stage, a spot UV curing lamp head (with light guide), a benchtop power supply and control unit, and a fume extractor (optional).
2. Product Description
This spot curing machine is designed for precision curing in selective areas on electronic components, such as fixing specific components, bonding wires, or repairing coatings. It delivers a focused, high-intensity beam of UV light for fast and localized curing without affecting surrounding areas.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | UV-SPOT50 (Standard Model, Customizable) |
| UV Source | Mercury Vapor Lamp / LED (Customizable) |
| Spot Size | 3mm - 15mm in diameter (via light guides, Customizable) |
| UV Intensity | Up to 8000 mW/cm² (Adjustable) |
| Curing Cycle | 0.1 - 999.9 seconds (Digital Timer) |
| Lamp Lifespan | 1000 hours (Mercury) / >20,000 hours (LED) |
| Operation Mode | Benchtop / Robotic Arm Integration (Customizable) |
4. Application
Best suited for LOCA (Liquid Optically Clear Adhesive) curing for displays, micro-encapsulation, and precise adhesive bonding in MEMS and camera modules.
5. Customization

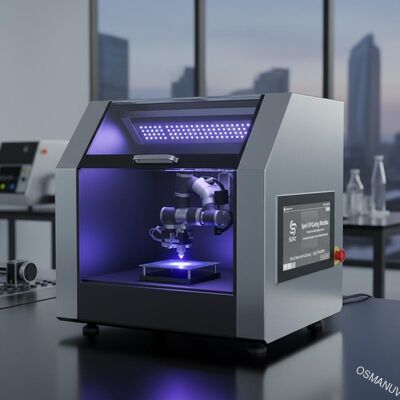

We provide extensive customization on the spot size, UV intensity profile, and integration with XYZ stages or robotic arms for fully automated precision curing.
6. Feature
-
Pinpoint accuracy for selective area curing.
-
Adjustable intensity and timer for precise process control.
-
Compact and ergonomic design.
-
Ideal for R&D, low-volume production, and repair work.
7. Support and Services
Our support includes on-site calibration, application testing, and priority technical assistance.
8. Packing and Shipping
The unit is packed in a durable foam-insulated box within a wooden crate to prevent transit damage.
9. FAQ
-
Q: What is the minimum spot size achievable?
-
A: With specialized light guides, we can achieve a spot as small as 1mm, customized for your application.
-
-
Q: Can it be used in a cleanroom environment?
-
A: Yes, we offer customized cleanroom-compatible models.
-
