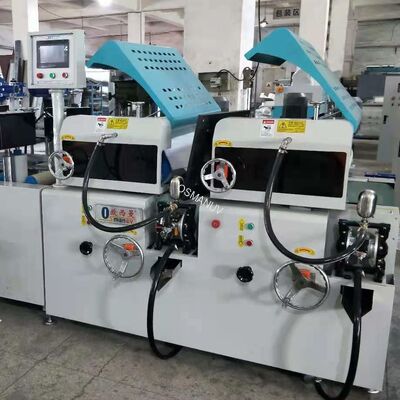

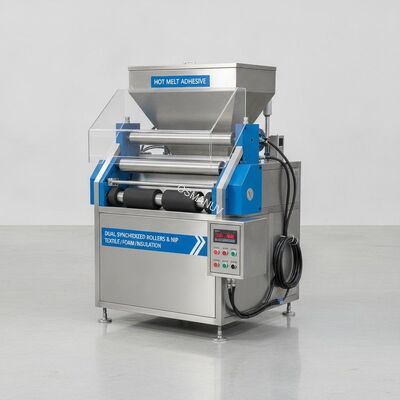

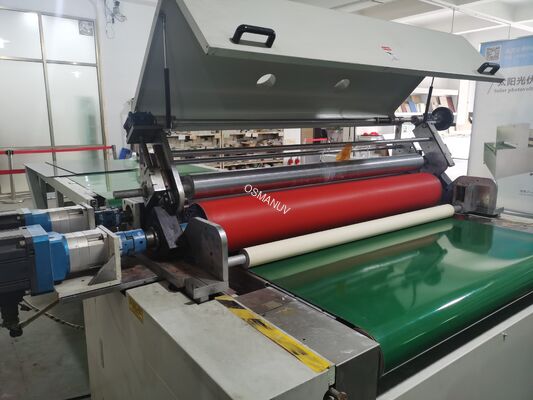

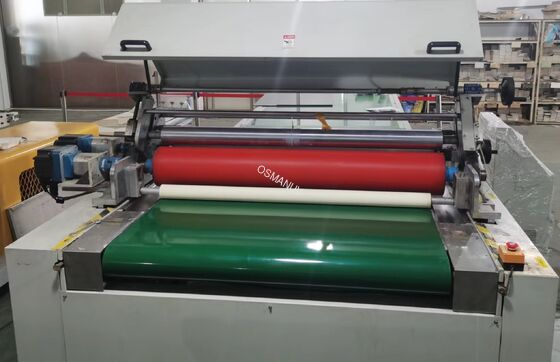

Hot Melt Roll Coater with Synchronized Dual Rollers & Nip Compression – Customizable for Textile/Foam/Insulation

This customizable roll coater is a continuous coating system that applies precise layers of paints, adhesives, functional coatings, or hot melts onto flat or flexible substrates. Available in industrial wide-format, laboratory roll-to-roll, and hot melt configurations.

The system is fully customizable in coating width, roller configuration (2-roll / 3-roll / reverse roll), drying modules, and automation level. The roller coating method is suitable for large-area sheet and strip coating, offering high efficiency and ease of achieving continuous production.

Working principle: The coating is picked up by the applicator roll from the pan and transferred to the substrate. In reverse roll coating, the applicator roll rotates opposite to the substrate direction, providing better shear control and enabling ultra-thin, uniform coatings (down to 1-2 µm). This method is widely used for architectural paint on coil metal, thermal coatings, adhesives, and specialty optical applications.

• Woodworking & panels: Furniture, cabinets, decorative boards, MDF, plywood coating - primer & finishing coat painting
• Metal processing: Pre-painted metal coils, corrosion-resistant coatings, architectural coil coating
• Packaging industry: Barrier coatings (moisture/oxygen resistance), heat-seal layers, adhesive primers
• Flexible electronics & optics: Conductive layers, functional films, OLEDs, solar cells - slot die and gravure methods available
• Textile & flooring: Carpet backing, foam lamination, non-woven fabric coating
• Automotive & construction: Carbon fiber products, insulation panels, adhesive tapes
• Adhesive application: Hot melt or cold glue application for lamination

This roll coater is highly customizable to meet your specific production requirements:

• Roller configuration: Select from 2-roll direct, 3-roll inline, 3-roll V-type, or reverse roll configuration
• Coating width: Customizable from laboratory scale (100-300 mm) to industrial scale (up to 3,400+ mm)
• Coating method: Forward roll, reverse roll, differential roll, gravure roll, slot die
• Roller material & surface: Chrome-plated, rubber-covered (EPDM, polyurethane), ceramic-coated, or grooved rollers
• Roller gap & load control: Manual micrometer or servo motor automatic adjustment
• Speed ratio: Programmable applicator/pick-up roll speed ratios - customizable per process requirements
• Drying/curing system: Hot air, IR, UV, NIR - single or combined modules
• Substrate pretreatment: Corona treatment, web cleaning, plasma treatment
• Feeding method: Pan feed (for low viscosity) or nip feed (for high viscosity)
• Automation level: Manual, semi-automatic, or fully automatic with recipe management
• Clean-in-place (CIP): Remote solvent/water flushing system for roll and pan cleaning
• Roller quick-change system: Hinged bearings for simple cleaning and roller exchange

• Precise thickness control: Adjustable roll gap and speed ratios enable coating thickness from 0.003mm with high accuracy
• High-speed continuous operation: Supports production speeds up to 300 m/min for gravure coating
• Excellent coating uniformity: Reverse roll and differential speed options minimize streaks and defects
• Wide material compatibility: Handles rigid panels, flexible films, textiles, foam, and metal sheets
• Paint saving: Roller coating saves up to 50% paint compared to manual spraying, with 100% paint utilization via recycle system
• Low maintenance: Solid cast-iron frame with vibration absorption, sealed bearings, easy-clean surfaces
• Safety features: Emergency stop, light curtains, safety interlocks, protective hood with safety logic

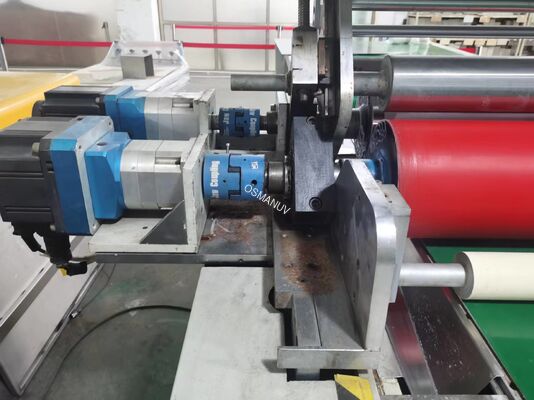

• Independent motor control: Conveyor belt, rubber wheel, and metering wheel controlled by independent motors for more accurate coating

• Free process consultation and material testing - send us your substrate for trial coating
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call or IoT monitoring
• 12-month warranty on mechanical components (wear parts excluded)
• Spare parts availability from regional warehouses
• Roller regrooving and reconditioning services
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced plywood case for main body and control cabinet; foam padding for fragile components (rollers, control panel)
• Standard model lead time: 15-25 days after order confirmation
• Custom configuration lead time: 30-50 days (longer for custom rollers or drying modules)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
