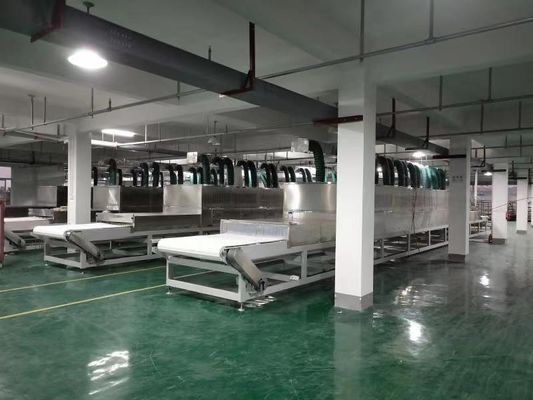

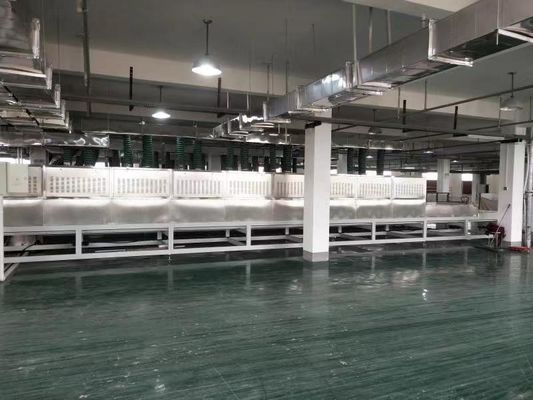

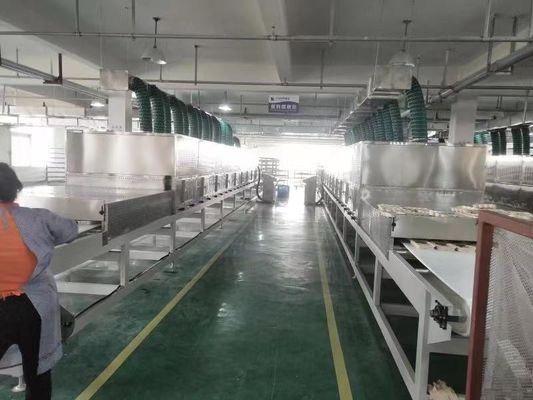

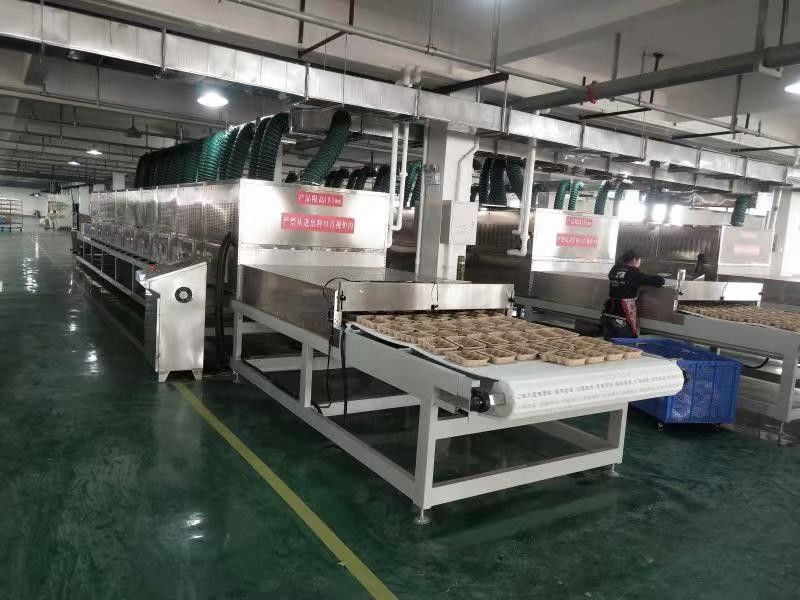

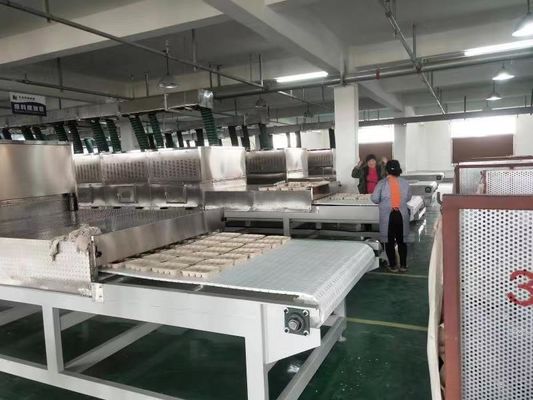

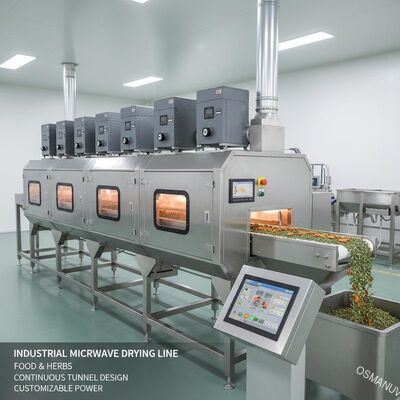

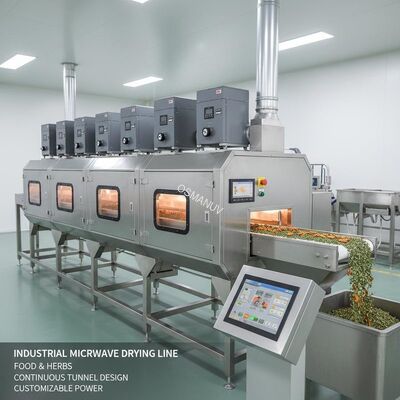

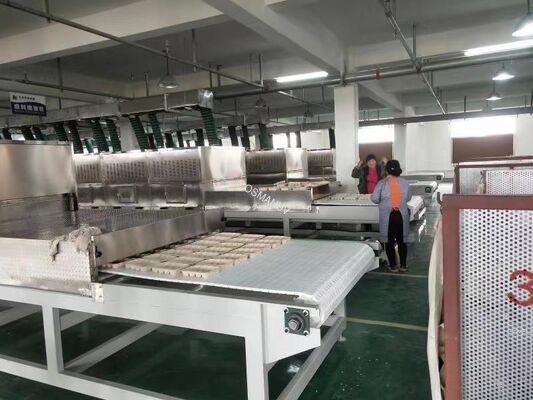

Industrial Microwave Drying Line for Food & Herbs – Continuous Tunnel Design with Customizable Power
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | مواصفة |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 30-45 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| سعة: | 5-500 كجم/دفعة | نظام القيادة: | محرك سيرفو |
|---|---|---|---|
| مظهر: | حزام القافلة | سرعة الإنتاج: | 15-25M/دقيقة |
| ميزات السلامة: | حماية من الحرارة الزائدة، حماية من الفراغ | كفاءة التدفئة: | عالي |
| نظام التحكم: | بلك | مادة: | الفولاذ المقاوم للصدأ |
| إبراز: | Industrial microwave drying line,Continuous tunnel microwave dryer,Customizable power microwave equipment |
||
منتوج وصف
This customizable microwave drying line uses volumetric heating to remove moisture evenly from materials without surface overheating. Available in continuous tunnel, batch cabinet, and multi-pass configurations. The system is fully customizable in power (kW), belt width, number of magnetrons, and drying length. Ideal for heat-sensitive products like herbs, spices, nuts, fruits, vegetables, and industrial pastes. PLC control allows precise temperature and belt speed adjustment for different materials.
| Parameter | Continuous Tunnel Dryer | High-Capacity Dehydration System | Compact Batch Dryer |
|---|---|---|---|
| Microwave power (customizable) | 6-200 kW | 20-500 kW | 1-10 kW |
| Belt width (customizable) | 400-2000 mm | 600-2500 mm | 300-600 mm |
| Drying length (customizable) | 3-20 m | 5-30 m | 1-2.5 m |
| Number of magnetrons (customizable) | 6-200 pcs | 20-500 pcs | 2-12 pcs |
| Belt speed | 0.1-5 m/min | 0.2-8 m/min | 0.5-3 m/min |
| Processing temperature | 40-120°C | 40-110°C | 40-100°C |
| Moisture removal rate | up to 80 kg/h | up to 300 kg/h | up to 8 kg/h |
| Control system | PLC + HMI touchscreen | PLC + remote monitoring | PLC or digital timer |
- Food industry: Drying fruits, vegetables, nuts, meat jerky, pasta
- Herbal & pharmaceutical: Drying ginseng, chamomile, medicinal powders
- Industrial materials: Ceramic cores, rubber vulcanization, wood drying
- Chemical & agricultural: Pigments, fertilizers, flower buds
This drying line is highly customizable in many aspects:
- Microwave power and number of generators
- Belt material (PTFE mesh, stainless steel chain, or customizable fabric)
- Tunnel length and width
- Multi-layer or multi-pass configuration for limited floor space
- Hot air supplement for surface drying
- Explosion-proof design for solvent-based materials
- Cooling zone integration at outlet
- Volumetric heating - no temperature gradient
- Energy efficient (up to 60% vs hot air drying)
- Short drying time (minutes vs hours)
- PLC auto-control with data logging
- No thermal damage to sensitive materials
- Compact footprint for continuous production
- Free material testing in our lab
- Custom layout design and on-site commissioning
- Operator training included
- 24/7 remote technical support
- 18-month warranty on magnetrons (prorated)
Packing: Antistatic film + reinforced plywood case with foam padding for magnetrons
Shipping: FOB Qingdao / CIF by sea or air. Lead time: 30-45 days after customization confirmation (bulk magnetrons require longer procurement for >100kW systems).
Yes, we offer free lab testing and will customize power, belt speed, and tunnel length based on your material's moisture profile.
Yes, our system uses low-temperature microwave drying (40-80°C), which preserves color, flavor, and active ingredients - fully customizable via PLC temperature control.
The system is modular. You can customize additional microwave cavities later to increase capacity without replacing the whole line.
