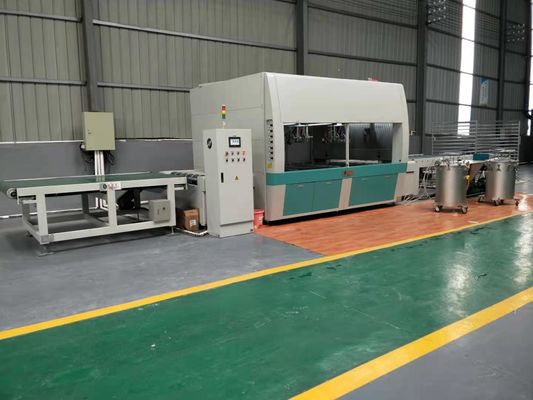

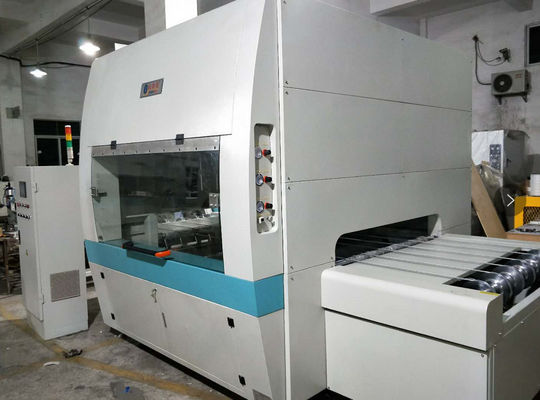

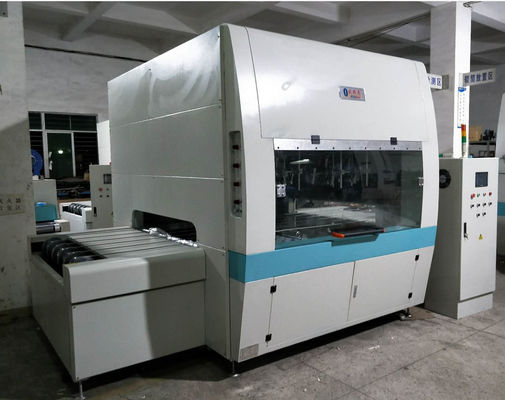

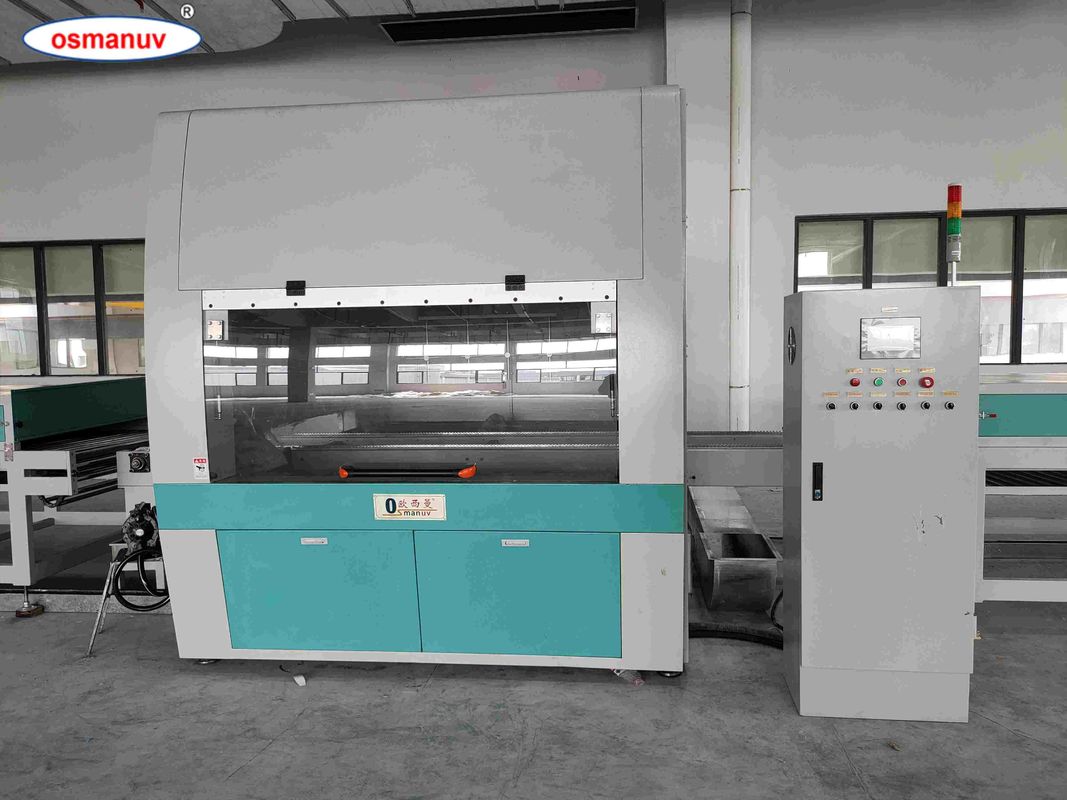

Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | مواصفة |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 30-45days |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| سرعة العمل: | 1-10M/دقيقة | قطر بندقية الرش: | 1.0-1.5mm |
|---|---|---|---|
| الطريقة الجافة: | مصباح الأشعة فوق البنفسجية | رش المسافة: | 0-200 ملم |
| تنطبق على: | حاوية طعام اللب | متانة الطلاء: | متانة عالية |
| مادة: | المطاط الطبيعي،PVC | أبعاد: | 800 × 600 × 1200 ملم |
| إبراز: | fully automatic spray coating line,customizable PLC spray coating system,low overspray spray coating machine |
||
منتوج وصف
Fully Automatic Reciprocating Spray Coating Line | Customizable PLC & Paint Supply System | Low Overspray Rate
Product Description
This automatic spraying machine is designed for high-efficiency, uniform coating on wood, metal, plastic, and ceramic parts. Integrated electrostatic technology reduces paint waste by up to 40%. The modular structure allows customizable configuration for small batch or mass production. Supports water-based, solvent-based, and UV paints.
Technical Parameters
| Parameter | Standard Range | Customizable Options |
|---|---|---|
| Max workpiece size (L×W×H) | 2000×1000×500 mm | Yes – up to 4000×2000×800 mm |
| Spray gun type | Automatic air spray gun | Yes – airless / HVLP / electrostatic |
| Number of guns | 2 (standard) | Yes – 1 to 8 guns |
| Conveyor speed | 1–5 m/min | Yes – 0.5–10 m/min |
| PLC control | 7" HMI + LOGO! | Yes – Delta |
| Paint recovery efficiency | ≥85% | Yes – add cyclone separator |
| Power supply | 380V / 50Hz / 3-phase | Yes – 220V / 60Hz / custom voltage |
| Air consumption | 600 L/min @ 6 bar | Yes – regulated per gun quantity |
Application
-
Furniture & wooden doors
-
Automotive parts (bumpers, mirrors, wheels)
-
General industry (machinery covers, electronics housings)
-
Plastic & composite products
-
Customizable for explosion-proof environment (ATEX) or cleanroom class
Customization
We offer full customization including:
-
Size & layout of the whole line
-
Spraying trajectory (teach-in or offline programming)
-
Color change system (manual / semi-auto / full-auto)
-
Drying method (IR, hot air, UV)
-
Data export (MES / SCADA / OPC UA)
Feature
-
Closed-loop pressure control for consistent film thickness
-
Automatic gun trigger reduces paint consumption
-
Touchscreen recipe management (store up to 1000 recipes)
-
Quick color change (< 3 minutes with customizable flushing module)
-
Overspray capture system with washable filters
Support and Services
-
Free remote troubleshooting (24/7)
-
On-site commissioning (customizable service duration)
-
Spare parts supply for 10+ years
-
Operator training (video / on-site / customizable training plan)
-
Line audit and productivity optimization report
Packing and Shipping
-
Packing: Stretch-wrapped with anti-rust oil + fumigation-free wooden case (customizable labeling & export carton)
-
Shipping: FOB / CIF / EXW (customizable port: Shanghai / Ningbo / Shenzhen)
-
Lead time: 20–35 working days (customizable rush order processing)
FAQ
Q1: Can the spraying width be customized for irregular shapes?
A: Yes. The robot arm or reciprocator stroke is 100% customizable based on your workpiece CAD drawing.
Q2: Do you support water-based paint?
A: Yes, with customizable stainless steel tank and acid-resistant hoses.
Q3: What is the minimum order quantity?
A: 1 set (complete line is customizable even for single unit).
Q4: How to get a customized quotation?
A: Send us your: workpiece size, paint type, output per shift, and preferred PLC brand – we design within 24h.
