High-Speed Automatic Thermal & Cold Laminating Line for Printing Packaging with Customizable Film Lamination
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | مواصفة |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 30-45days |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| الجهد االكهربى: | 220V ، 380V ، 380V/220V ، 220V/380V ، 380V/50Hz | حالة: | جديد |
|---|---|---|---|
| وزن: | 1350 كجم ، 450 كجم ، 8 طن ، 120 كجم ، 200 كجم | خدمة ما بعد البيع المقدمة: | المهندسون المتاحون لآلات الخدمة في الخارج ، الدعم الفني للفيديو ، الدعم عبر الإنترنت ، دعم الطرف الث |
| يكتب: | آلة الطلاء، خط إنتاج الطلاء، آلة طلاء الورنيش UV لورق الطباعة، أخرى، 1320 مم | طلب: | السلع والآلات والأجهزة والكيماويات والمنسوجات والأغذية |
| الاستخدام: | آلة طلاء للأشعة فوق البنفسجية، حماية المطبوعات الرقمية | مادة: | PP، مادة الليزر ذاتية اللصق، زجاج الزجاجة، المعدن، PVC |
| إبراز: | high-speed automatic thermal laminating machine,cold laminating line for printing packaging,customizable film lamination UV coating machine,cold laminating line for printing packaging,customizable film lamination UV coating machine |
||
منتوج وصف

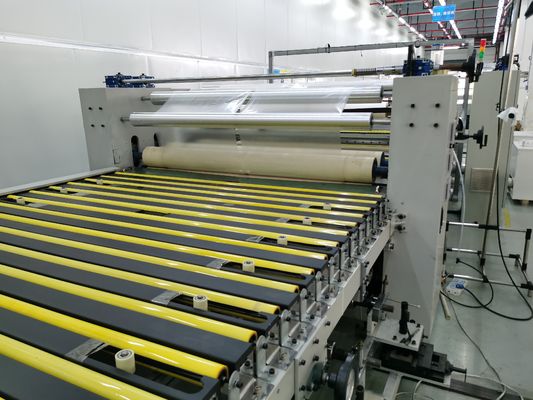

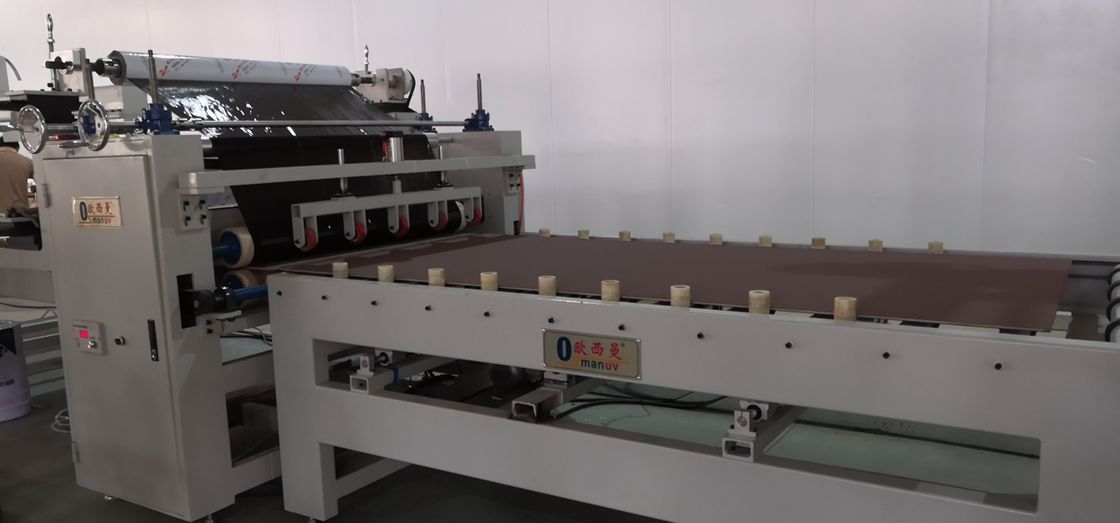

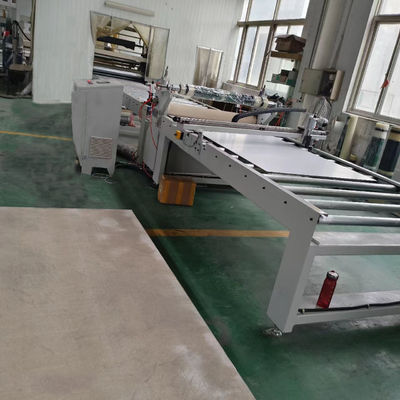

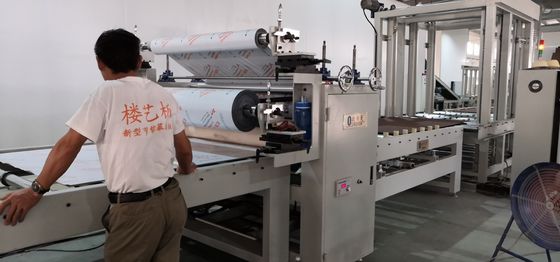

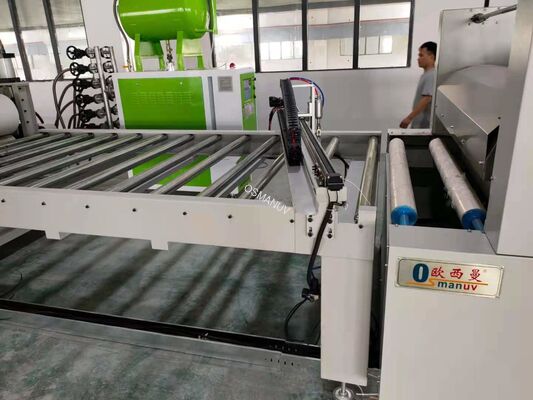

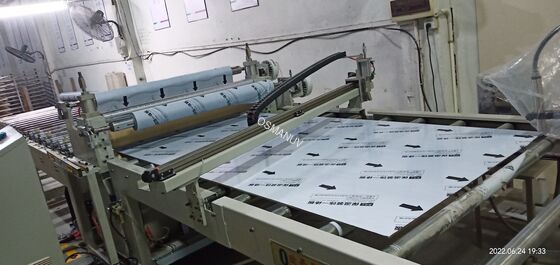

High-Speed Automatic Thermal & Cold Laminating Line for Printing Packaging | Customizable Film Lamination Production Line
Product Description
This surface laminating line is designed for bonding films (BOPP, PET, PVC, thermal film) onto printed paper, plastic sheets, corrugated board, or aluminum foil. It delivers bubble-free, high-transparency lamination to enhance durability, water resistance, and visual finish. Suitable for packaging, book covers, labels, and carton boxes.
Technical Parameters (Table format)
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Max. Laminating Width | 800mm / 1000mm / 1200mm | ✔ up to 2000mm |
| Laminating Speed | 0–60 m/min (standard) | ✔ 0–120 m/min available |
| Substrate Thickness | 80–500 gsm (paper) / 0.2–5mm (board) | ✔ Yes |
| Film Type | BOPP, PET, PVC, PLA, thermal film | ✔ Yes |
| Laminating Temperature | 50–150°C (hot) / ambient (cold) | ✔ Yes |
| Roller Type | Silicon roller / EPDM / Steel + rubber coated | ✔ Yes |
| Heating Method | Electrical / Oil heating | ✔ Yes |
| Power Supply | 380V, 50/60Hz, 3-phase | ✔ Yes (custom voltage) |
| Air Pressure | 0.6–0.8 MPa | — |
Application
-
Printing & packaging industry (books, magazines, cartons)
-
Label lamination
-
PVC card / sheet protection
-
Corrugated board surface finishing
-
Photo and poster laminating
Customization
We offer full customization including:
-
Working width, speed, heating type
-
Roller material (silicone, rubber, Teflon)
-
Automatic vs semi-automatic control
-
Solvent-free glue system or thermal film unit
-
Dust-free cleanroom version
-
Custom color and branding
Feature
-
Touchscreen PLC with fault diagnosis
-
Independent tension control for film and substrate
-
Pneumatic pressure adjustment on laminating rollers
-
Automatic edge alignment system
-
Anti-static & dust removal brushes
-
Energy-saving drying tunnel
-
Emergency stop and safety guard
Support and Services
-
24/7 technical support online
-
On-site installation and training (optional)
-
Spare parts supply for 10+ years
-
12-month warranty + lifetime remote assistance
-
Free lamination process consulting
Packing and Shipping
-
Packing: Stretch film + waterproof PE cover + reinforced plywood case (export standard)
-
Shipping: FOB/CIF by sea, air, or railway (door-to-door optional)
-
Delivery time: 25–45 working days after customization confirmation
FAQ
Q: Can the laminating line handle both thermal and cold lamination?
A: Yes, we provide a customizable switching system between hot and cold rollers.
Q: What is the minimum order quantity?
A: 1 set for standard lines; customization also accepted for 1 set.
Q: Do you offer a solvent-free lamination option?
A: Yes, we supply both solvent-based and solvent-free (eco-friendly) glue systems.
