High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMNAUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | OSM-WBHG-1320T |
| الوثيقة: | microwave drying equipment.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 45 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| اسم المنتج: | ماكينة تجفيف بالميكروويف 14 مرحلة | عرض فعال: | 1320 ملم |
|---|---|---|---|
| الجهد االكهربى: | 380V/50Hz | قوة: | 136 كيلو واط |
| تردد الميكروويف: | 2450 ميجا هرتز + 50 هرتز | سرعة الطلاء: | قابل للتعديل، 0.5-5 متر / دقيقة |
| ضمان: | 1 سنة | حالة: | جديد |
منتوج وصف

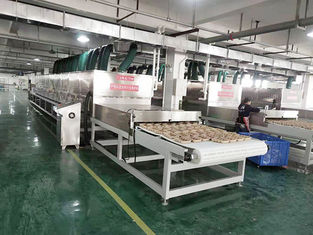

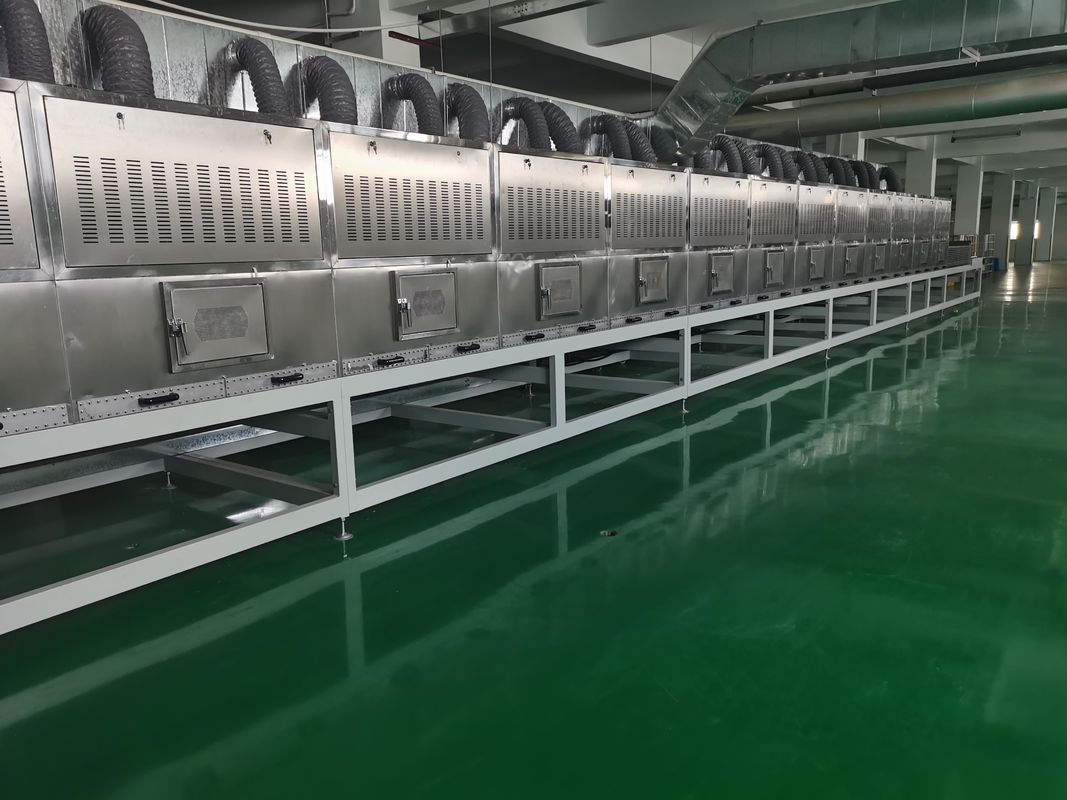

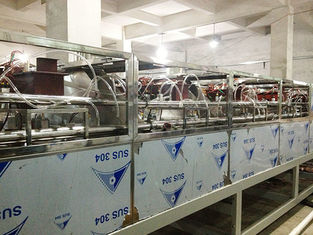

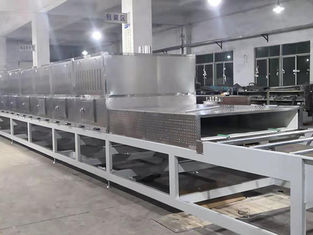

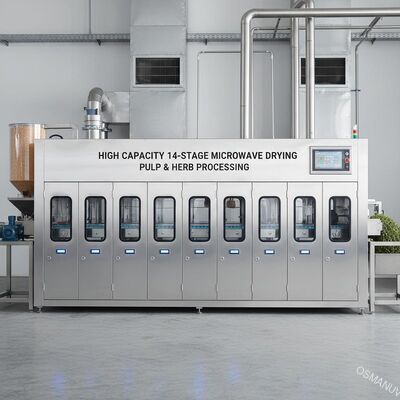

High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Technical Parameters
| Parameter | Details |
|---|---|
| Model | OSM-WBHG-1320T |
| Number of Cavities | 14 |
| Overall Dimensions (L×W×H) | 23380mm × 1620mm × 1855mm |
| Total Input Power | 136 KW |
| Conveyor Belt Speed | 0.5 - 5 m/min (Delta Inverter) |
| Magnetron Cooling | Water-cooled |
| Power Supply Cooling | Oil-immersed Water-cooled |
| Monitoring | Built-in camera for internal viewing |
Application
Designed for high-volume drying of pulp molding products and bulk herbal materials, seamlessly integrating into automated production lines.
Customization
As a non-standard customized system, we offer flexibility in the number of stages, overall length, power rating per stage, and additional features like enhanced monitoring or specific safety interlocks.
Feature
-
Multi-Stage Design: Allows for graduated drying, optimizing energy use and final product quality.
-
Continuous Operation: Engineered for 24/7 industrial use with a magnetron lifespan of 6000-8000 hours.
-
Integrated Monitoring: Internal camera system allows real-time visual inspection of the drying process.
Support and Services
Comprehensive after-sales support includes a one-year warranty, remote diagnostics, and the option for on-site technician dispatch (subject to service fees).
Packing and Shipping
The large tunnel is sectioned for safe transport. All parts are clearly marked for easy reassembly. Shipping is FOB from our factory.
FAQ
-
Q: What is the power requirement?
A: 3-phase 5-wire 380V±10% 50Hz±2%. The neutral line must be the same size as the phase line. -
Q: Do you provide the exhaust ducting?
A: No, the external exhaust ducts and environmental protection equipment are to be supplied by the customer.
