Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | OSM-GX-PV-800/PT |
| الوثيقة: | automatic spray coating mac...ne.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 35 يومًا |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| اسم المنتج: | آلة طلاء الرش الآلي | عرض الطلاء: | 800mm |
|---|---|---|---|
| قوة: | 11kw | الجهد االكهربى: | 380 فولت/50 هرتز، قابل للتعديل |
| الصف التلقائي: | التلقائي ، شبه التلقائي ، دليل آخر | حالة: | جديد |
| ضمان: | 1 سنة | سماكة المعالجة: | 3-200mm |
منتوج وصف

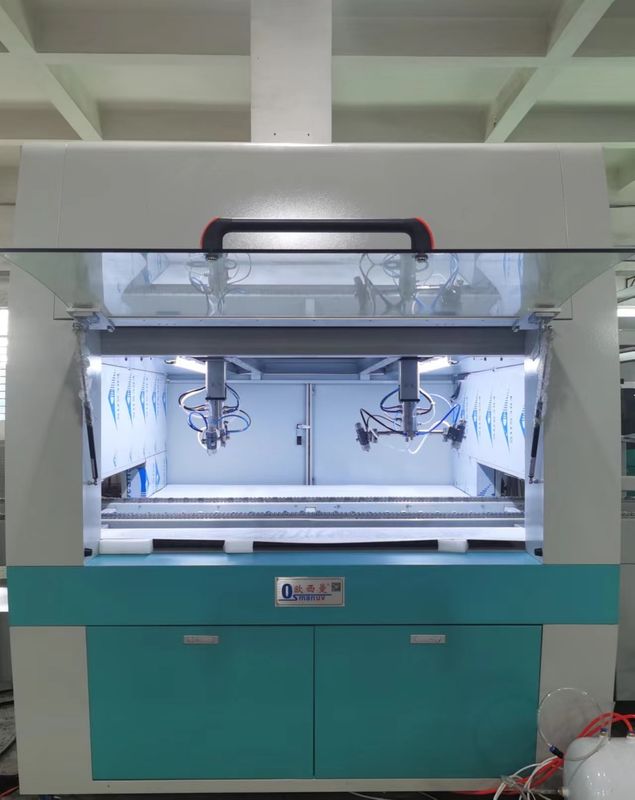

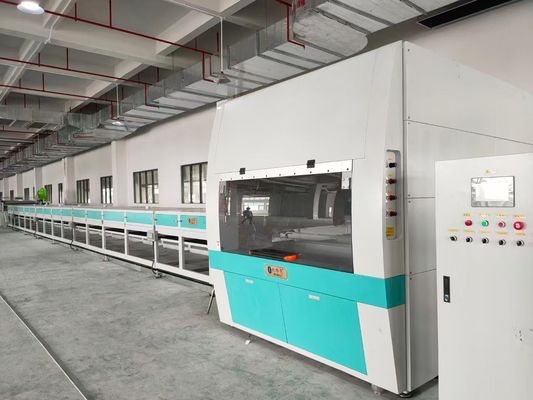

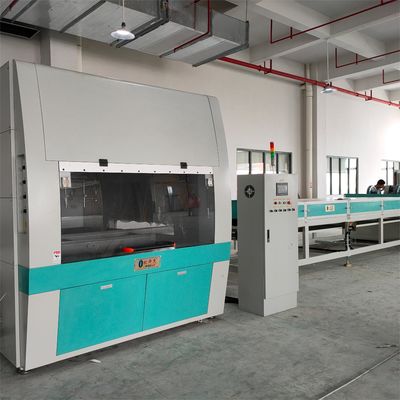

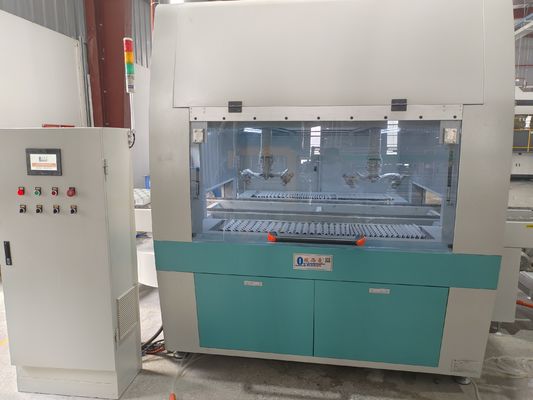

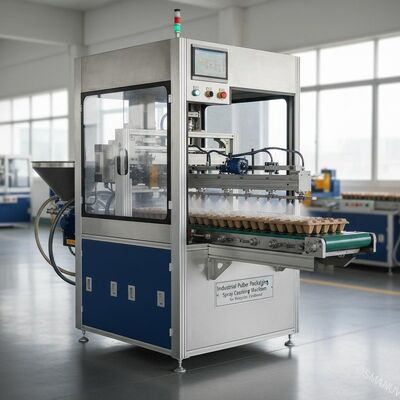

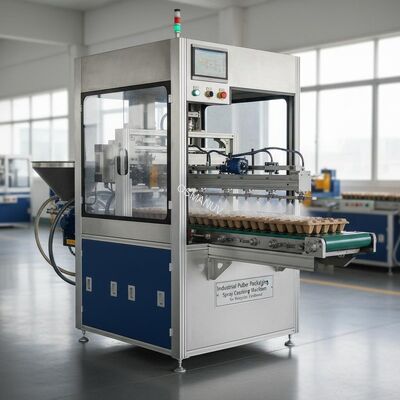

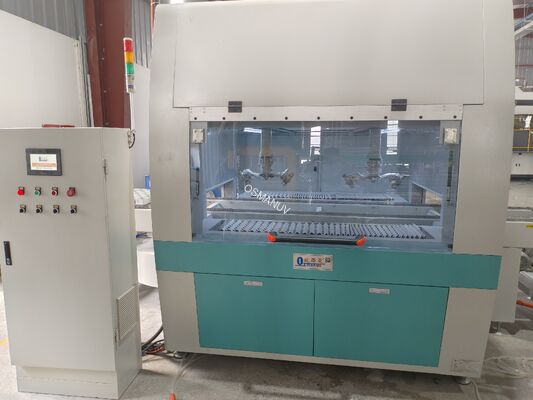

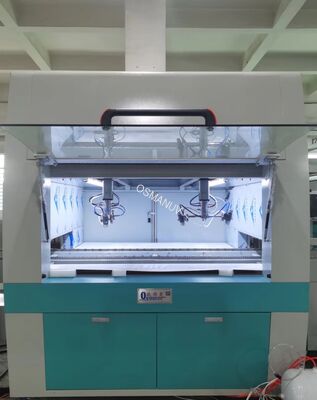

Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
Product Description
This automated reciprocating spray coating machine is specifically designed for applying uniform functional and decorative coatings to industrial paper pulp packaging made from recycled cardboard and waste paper. The system features precision servo-driven spray guns with programmable motion paths to ensure consistent coverage on complex 3D shapes while minimizing material waste and optimizing production efficiency.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-GX-PV-800/PT |
| Spraying Axis | X-Y-Z 3-axis programmable |
| Max Product Size | 3500×3050×2500 mm (Customizable) |
| Spray Guns | 4 guns (Customizable) |
| Coating Capacity | 300-600 pcs/hour |
| Control System | PLC + Touch Screen HMI |
| Repeatability | ±0.5 mm |
Application
Automated coating of industrial protective packaging, edge protectors, corner pads, and cushioning products made from recycled paperboard and waste paper materials.
Customization
-
Customizable number of spray guns and nozzle types
-
Customizable working envelope dimensions
-
Customizable coating thickness and pattern parameters
Feature
-
Precise 3-axis programmable path control
-
High transfer efficiency coating technology
-
Quick changeover between different products
-
Integrated exhaust and filtration system
Support and Services
-
On-site installation and calibration
-
Spray parameter optimization service
-
Operator training program
-
Annual maintenance contracts available
Packing and Shipping
-
Heavy-duty wooden crate packaging
-
Shock-absorbent mounting for precision components
-
Weather-proof covering for sea shipment
FAQ
Q: What is the coating transfer efficiency?
A: The HVLP system achieves 75-85% transfer efficiency, significantly reducing material consumption compared to conventional spraying.
