Bagasse Pulp Molding IR Drying Machine 2.2-Meter Rapid Drying System for Sustainable Tableware Production
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | أوسم-IR-500 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | تغليف الخشب |
| وقت التسليم: | 30 يومًا |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | التفاوض |
|
معلومات تفصيلية |
|||
| الجهد االكهربى: | 220V ، 380V ، 380V/220V ، 220V/380V ، 380V/50Hz | حالة: | جديد |
|---|---|---|---|
| البعد (l*w*h): | حجم مخصص، 2200 مم طول * 1000 مم عرض * 1280 مم ارتفاع | نوع مدفوع: | كهربائي |
| ضمان: | 1 سنة | قوة: | 9.5 كيلو واط |
| سرعة الطلاء: | قابل للتعديل، 0.1-3 متر / دقيقة | عرض الطلاء: | 500mm |
منتوج وصف
Bagasse Pulp Molding IR Drying Machine 2.2-Meter Rapid Drying System for Sustainable Tableware Production
Product Description

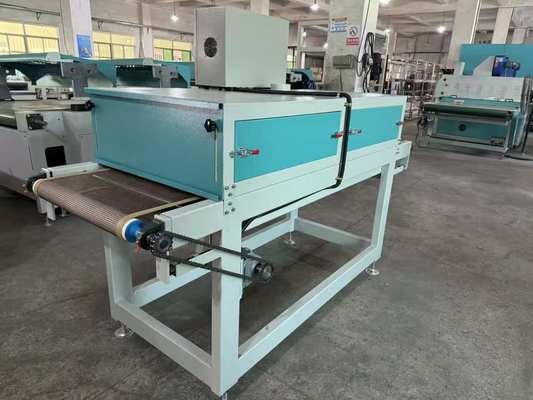

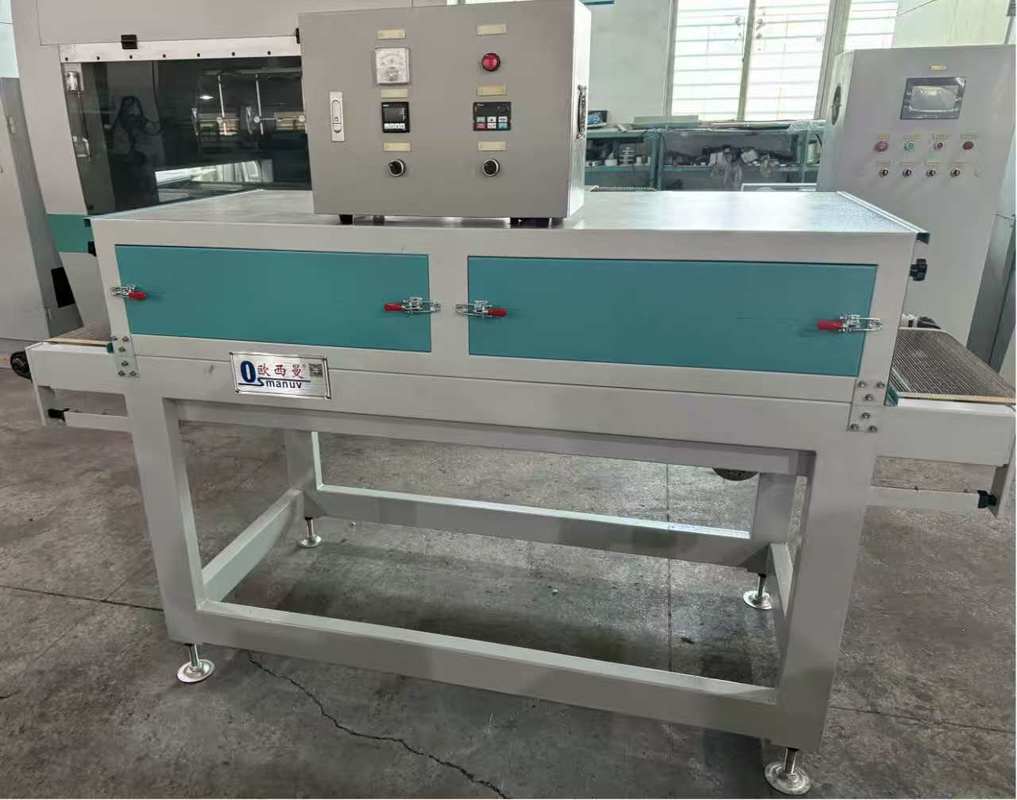

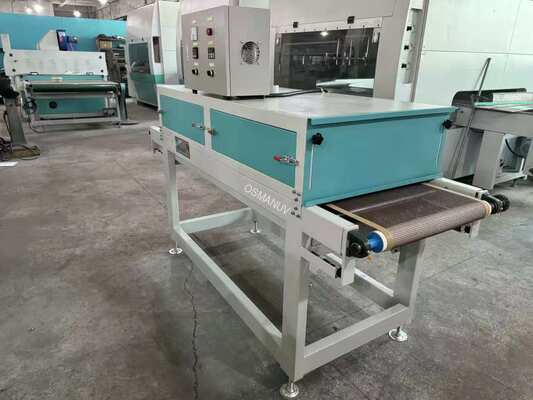

This 2.2-meter infrared drying machine is specially designed for efficient drying of bagasse pulp molded products. It utilizes medium-wave infrared heating technology to ensure rapid and uniform moisture removal, significantly reducing drying time while maintaining product integrity and shape stability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-IR-500 |
| Heating Length | 2.2 meters (Customizable) |

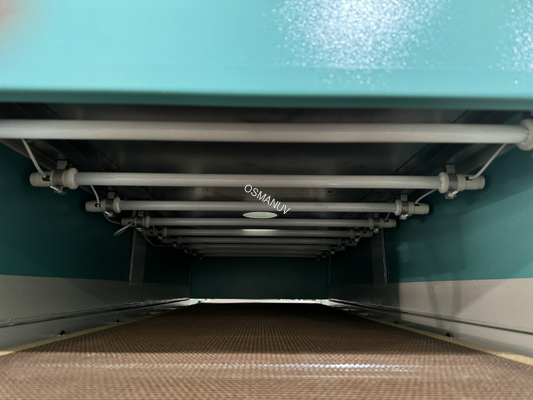

| IR Emitter Type | Medium-wave ceramic infrared |
| Power Capacity | 9.5 kW (Customizable) |
| Temperature Range | 50–250°C (adjustable) |
| Belt Width | 500 mm (Customizable) |

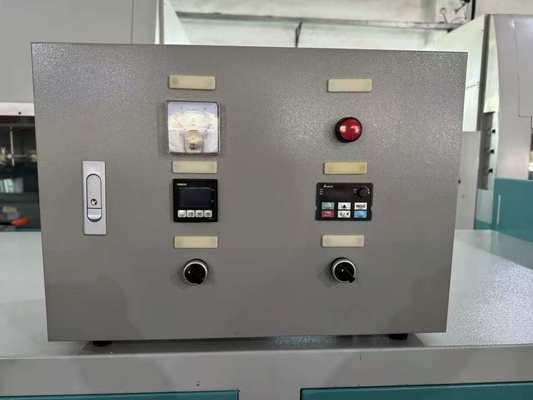

| Control System | PID with touch screen interface |
Application

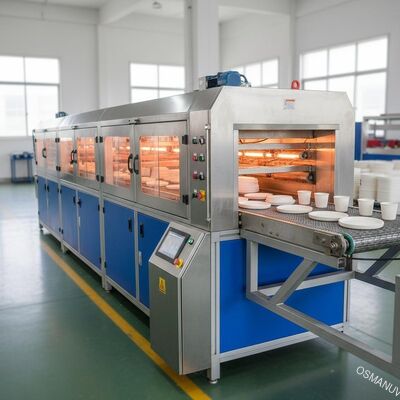

Drying of bagasse pulp tableware, food containers, egg trays, and packaging products in eco-friendly manufacturing lines.
Customization
-
Customizable IR emitter layout and power zoning
-
Customizable belt material (mesh, wire, Teflon)
-
Customizable thermal insulation and energy recovery setup
Feature
-
Fast and uniform heating
-
Low energy consumption per unit
-
Compact and space-saving design
-
Easy to integrate with existing lines
Support and Services
-
On-site installation support
-
Drying process optimization
-
Operator training manual
-
12-month warranty and spare parts supply
Packing and Shipping
-
Solid wooden crate with waterproof film
-
Internal foam cushioning
-
FOB/CIF shipping terms available
FAQ
Q: What is the typical drying time for bagasse pulp products?
A: Drying time ranges from 3–8 minutes depending on product thickness and initial moisture content.
