Automatic Natural Gas Drying Machine For Industrial Bamboo Paper Pulp Molding OSM-LRHG-1320T
تفاصيل المنتج:
| Place of Origin: | CHINA |
| اسم العلامة التجارية: | OSMANUV |
| إصدار الشهادات: | ISO9001 |
| Model Number: | OSM-LRHG-1320T |
| الوثيقة: | Natural Gas Drying Machine.pdf |
شروط الدفع والشحن:
| Minimum Order Quantity: | 1 Set |
|---|---|
| الأسعار: | negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
معلومات تفصيلية |
|||
| Exterior Dimensions: | 700mm x 700mm x 800mm | Weight: | 2000kg |
|---|---|---|---|
| Voltage: | 380V 50HZ | Product Named: | Natural Gas Drying Machine |
| Temperature Range: | Ambient +5℃ ~ 200℃ | Temperature Control: | PLC |
| Temperature Display: | LED display | Color: | Computer white / Green |
منتوج وصف
Automatic Natural Gas Drying Machine For Industrial Bamboo Paper Pulp Molding OSM-ND-800
Product Description:

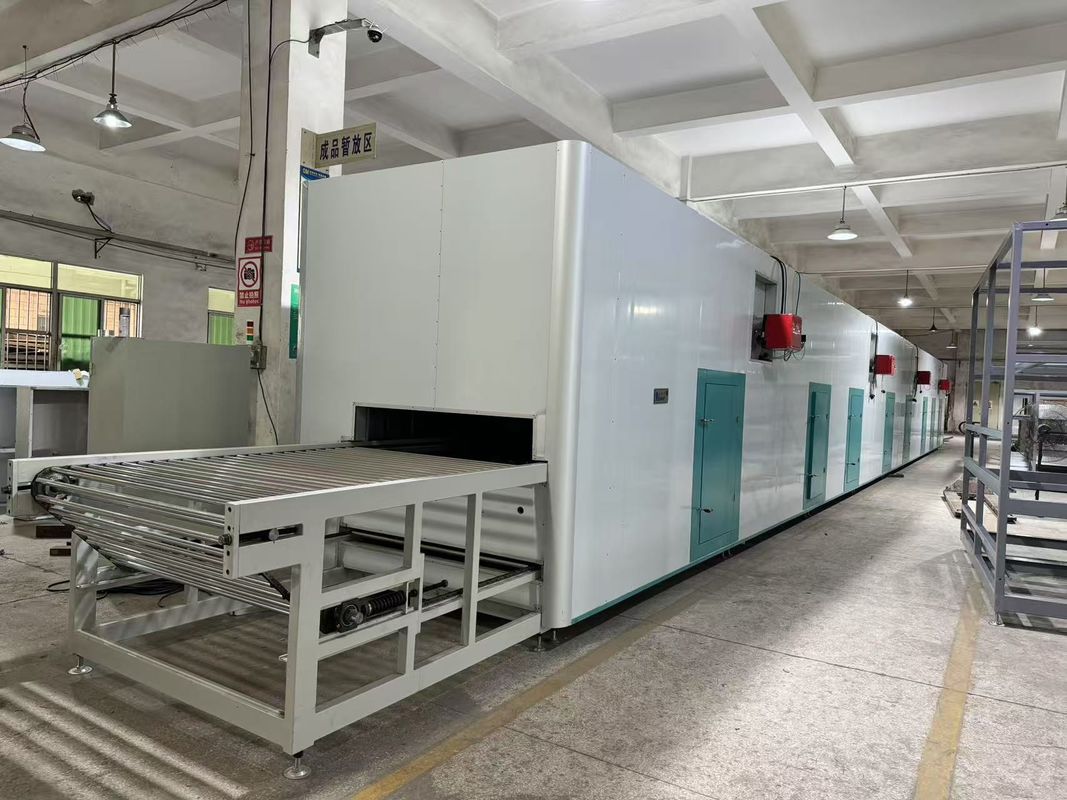

The 28M Natural Gas Drying Line (Model: OSM-LRHG-1320T) is a state-of-the-art industrial drying solution designed for high-efficiency and uniform heat distribution. With a total length of 28 meters, this drying line features a 304 stainless steel conveyor belt, advanced Italian Riello burners, and precise temperature control, making it ideal for drying textiles, coatings, and other heat-sensitive materials.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | OSM-LRHG-1320T |
| Dimensions | 28000mm (L) × 2400mm (W) × 3140mm (H) |

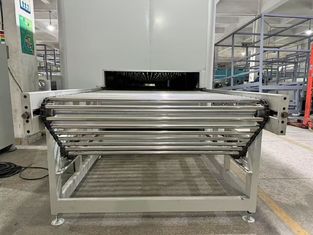

| Conveyor Belt Width | 1320mm (SUS 304 stainless steel) |
| Speed Range | 0.5-8 m/min (Delta inverter speed control) |
| Heating System | 4× Riello burners (200,000 kcal/h, jet-type hot air heating) |
| Fuel Type | Natural Gas |
| Power | 24KW, 380V 50Hz three-phase five-wire system |
| Insulation | 100mm thick rock wool board |
| Warranty | 1 year for machine, 6 months for electrical components |
Application:
-
Textile drying
-
Coating and paint curing
-
Food processing (low-temperature drying)
-
Paper and packaging industries
Customization:
-
Adjustable conveyor speed and temperature zones
-
Optional additional exhaust systems for specific industries
Feature:
-

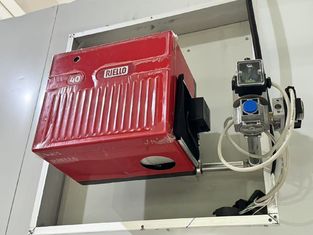

Energy-efficient Riello burners
-
Siemens electrical components for reliability
-
Overheat protection and emergency stop system
Support and Services:
-
On-site installation guidance
-
24/7 technical support
-
Spare parts availability
Packing and Shipping:
-
Standard export wooden crate packaging
-
Shipping dimensions and weight provided upon request
FAQ:
-
Q: Can the drying line use other fuels?
A: No, it is designed exclusively for natural gas. -
Q: Is the exhaust system included?
A: No, customers need to provide their own exhaust pipes and environmental equipment.
